Detail VAV Box with Reheat Coil Two-Way

Elements

About this detail

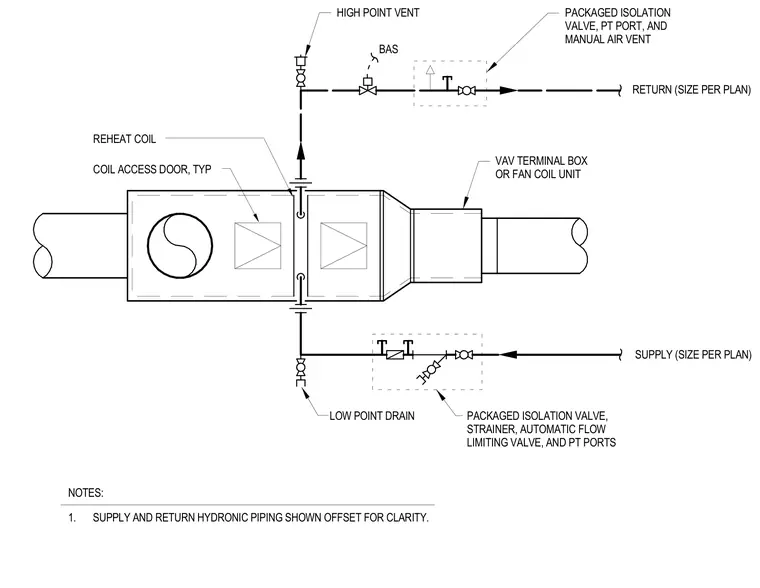

A variable air volume terminal box or fan coil unit connects to hydronic supply and return piping sized per plan. The supply branch features a packaged assembly with an isolation valve, strainer, automatic flow limiting valve, and pressure/temperature ports. The return branch includes a packaged isolation valve, pressure/temperature port, and manual air vent, along with a high point vent, low point drain, and building automation system connection. A reheat coil is integrated into the unit with a typical coil access door. Supply and return hydronic piping are shown offset for clarity.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
