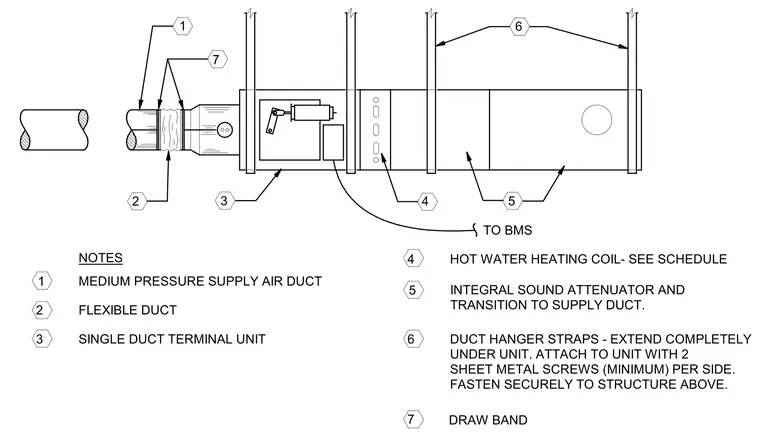

A single duct terminal unit is suspended from the structure overhead using duct hanger straps that extend completely under the unit and fasten securely with a minimum of two sheet metal screws per side. The unit connects to a medium pressure supply air duct via a flexible duct secured with draw bands. An integral sound attenuator and a transition to the supply duct are incorporated into the assembly. A hot water heating coil is provided per schedule, and building management system connections are established at the unit.
DRAW BAND TRANSITION TO SUPPLY DUCT. INTEGRAL SOUND ATTENUATOR AND FLEXIBLE DUCT 7 6 5 4 3 2 1 7 6 5 4 3 2 1 FASTEN SECURELY TO STRUCTURE ABOVE. SHEET METAL SCREWS (MINIMUM) PER SIDE. UNDER UNIT. ATTACH TO UNIT WITH 2 DUCT HANGER STRAPS - EXTEND COMPLETELY HOT WATER HEATING COIL- SEE SCHEDULE SINGLE DUCT TERMINAL UNIT MEDIUM PRESSURE SUPPLY AIR DUCT NOTES TO BMS
