Mechanical · M-TWYD3

Vertical Inline Pump Suction Diffuser Detail

Elements

Floors / Slabs Drainage Anchors / Embeds

Connections

About this detail

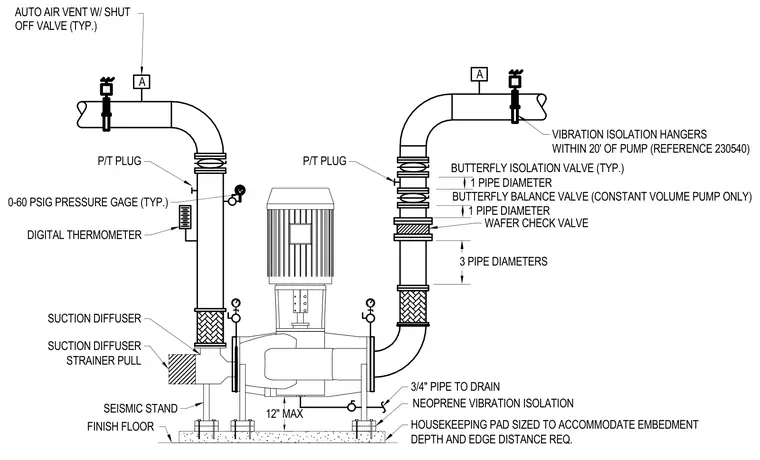

A vertical inline pump rests on a neoprene vibration isolation pad atop a concrete housekeeping pad sized to accommodate embedment depth and edge distance requirements. The pump is secured with a seismic stand and stands a maximum of twelve inches above the finished floor, with a three-quarter-inch drain pipe connected near the base. Suction and discharge piping configurations include a suction diffuser with strainer pull clearance, pressure gages, digital thermometers, pressure-temperature test plugs, wafer check valves, butterfly balancing and isolation valves, and auto air vents with shutoff valves. Vibration isolation hangers support the piping runs within twenty feet of the pump.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
