Chemical Injection and Monitoring Skid Piping Diagram

Elements

About this detail

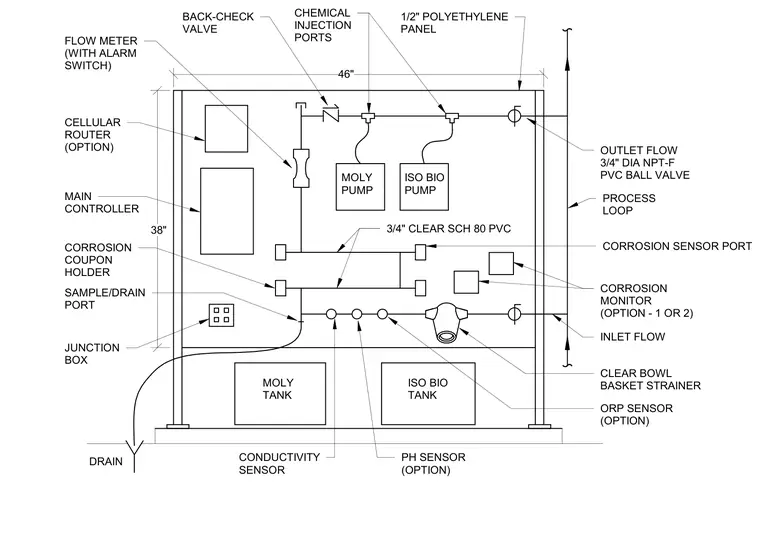

A process control skid is mounted on a half-inch polyethylene panel measuring thirty-eight inches high by forty-six inches wide. Moly and Iso Bio tanks feed respective pumps connected to chemical injection ports and back-check valves. The process loop incorporates three-quarter-inch clear schedule eighty PVC piping, a clear bowl basket strainer on the inlet flow, and a ball valve on the outlet flow. Additional components include a flow meter with alarm switch, corrosion coupon holder, conductivity sensor, pH sensor, ORP sensor, corrosion monitor, junction box, and a main controller with an optional cellular router.
