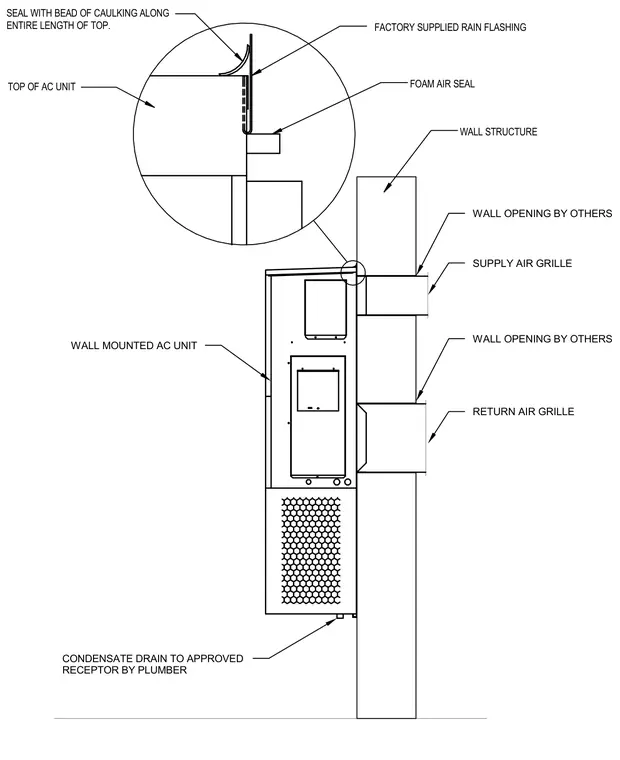

A wall-mounted air conditioning unit is installed against the wall structure with supply and return grilles passing through rough wall openings provided by others. The top of the AC unit features a factory-supplied rain flashing and a foam air seal, supplemented by a continuous bead of caulking along the entire length of the top edge. A condensate drain extends from the bottom of the unit to an approved receptor by the plumber.
WALL MOUNTED AC UNIT WALL OPENING BY OTHERS WALL OPENING BY OTHERS SUPPLY AIR GRILLE RETURN AIR GRILLE CONDENSATE DRAIN TO APPROVED RECEPTOR BY PLUMBER SEAL WITH BEAD OF CAULKING ALONG ENTIRE LENGTH OF TOP. TOP OF AC UNIT FOAM AIR SEAL WALL STRUCTURE FACTORY SUPPLIED RAIN FLASHING
