Control Riser Diagram

Elements

About this detail

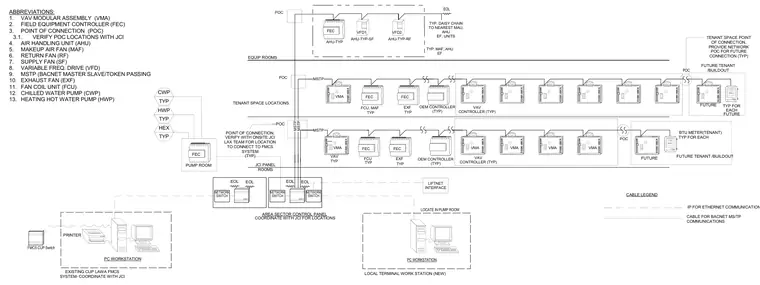

This control riser diagram outlines the architecture for the Facility Management Control System, linking network switches, area sector control panels, and a local terminal PC workstation. Field equipment controllers and variable modular assemblies connect via BACnet MS/TP communication cables daisy-chained to nearest equipment, including air handling units, makeup air fans, and exhaust fans. Points of connection are coordinated with JCI for tenant spaces, pump rooms with chilled and heating hot water pumps, and future buildouts with BTU meters. Ethernet communications link the network switches to the central FMCS CUP switch and printer workstation.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
