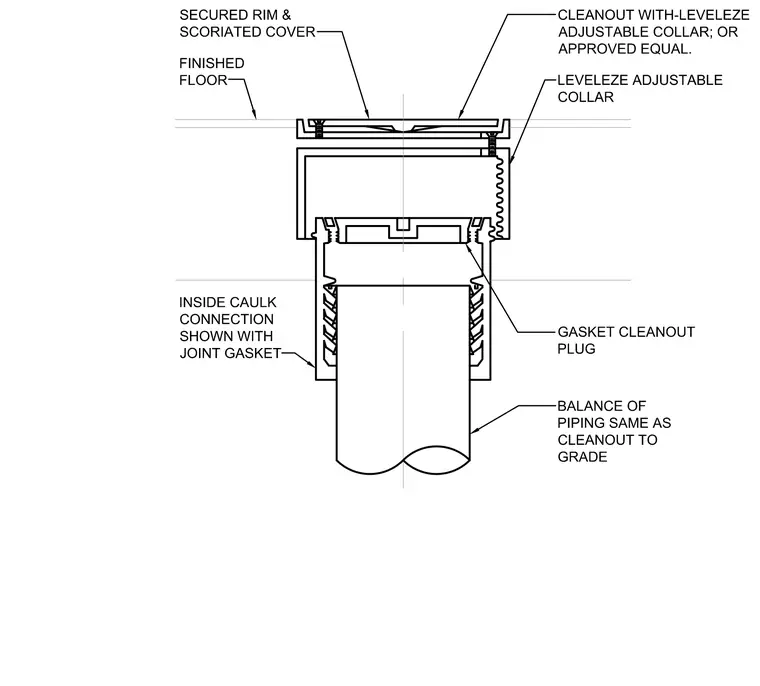

This assembly features a cleanout equipped with a Leveleze adjustable collar and an approved equal, topped by a secured rim and scoriated cover flush with the finished floor level. A gasket cleanout plug seals the upper body, which connects to the drainage piping via an inside caulk connection shown with a joint gasket. The balance of piping continues the same as a cleanout to grade.
INSIDE CAULK CONNECTION SHOWN WITH JOINT GASKET BALANCE OF PIPING SAME AS CLEANOUT TO GRADE GASKET CLEANOUT PLUG LEVELEZE ADJUSTABLE COLLAR CLEANOUT WITH-LEVELEZE ADJUSTABLE COLLAR; OR APPROVED EQUAL. FINISHED FLOOR SECURED RIM & SCORIATED COVER
