Energy Recovery Ventilator Components and Weight Distribution

About this detail

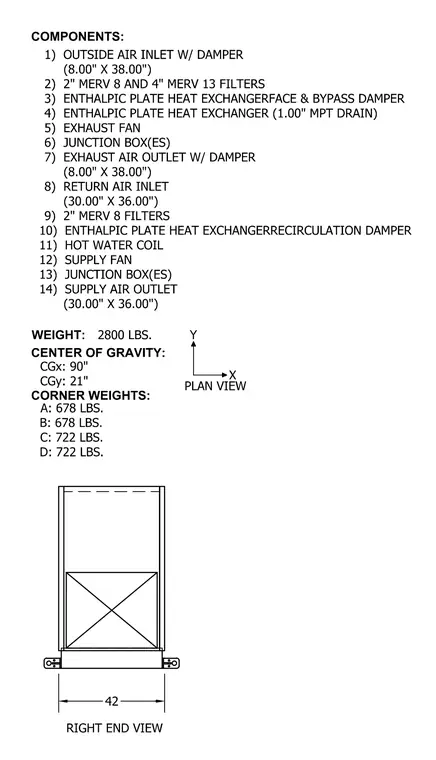

The unit comprises fourteen numbered components including an outside air inlet with an eight-inch by thirty-eight-inch damper, two-inch MERV 8 and four-inch MERV 13 filters, an enthalpic plate heat exchanger with bypass damper and a one-inch male pipe thread drain, an exhaust fan, junction boxes, an exhaust air outlet with an eight-inch by thirty-eight-inch damper, a thirty-inch by thirty-six-inch return air inlet, two-inch MERV 8 filters, an enthalpic plate heat exchanger recirculation damper, a hot water coil, a supply fan, junction boxes, and a thirty-inch by thirty-six-inch supply air outlet. The total weight of the assembly is twenty-eight hundred pounds with a center of gravity at ninety inches in the X direction and twenty-one inches in the Y direction. Individual corner weights are listed as six hundred seventy-eight pounds for corners A and B, and seven hundred twenty-two pounds for corners C and D. The right end view shows a width dimension of forty-two inches.
