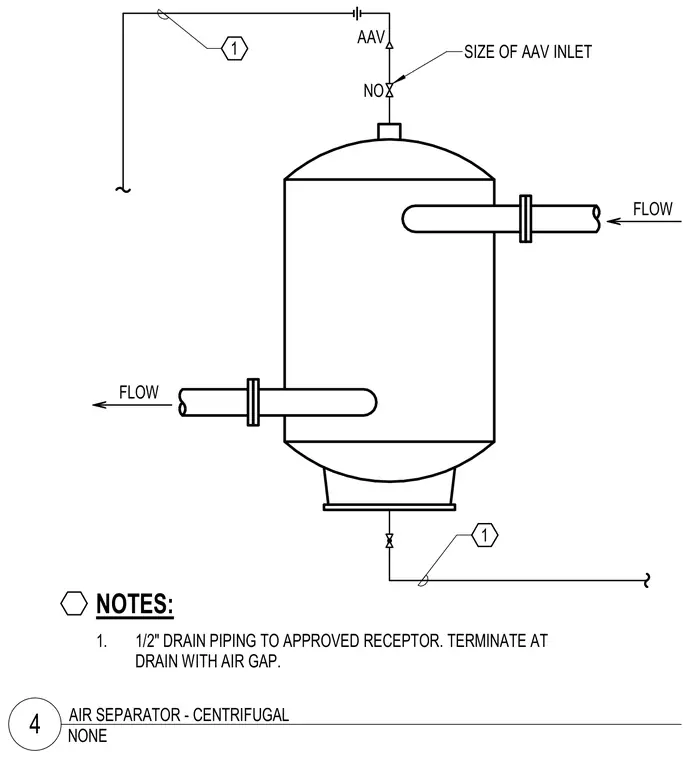

A centrifugal air separator features flanged inlet and outlet piping connections for fluid flow. An air admittance valve connects to the top outlet sized per the inlet requirement, accompanied by a half-inch drain piping line terminating at an approved receptor with an air gap.
1. 1/2" DRAIN PIPING TO APPROVED RECEPTOR. TERMINATE AT DRAIN WITH AIR GAP. NOTES: 1 1 SIZE OF AAV INLET FLOW FLOW AAV NO NONE 4 AIR SEPARATOR - CENTRIFUGAL
