Snow Melt Tubing Embedment and Slab Sensor Detail

Materials

Concrete

Elements

Floors / Slabs Insulation Site / Paving Anchors / Embeds

Connections

Embed Plate

About this detail

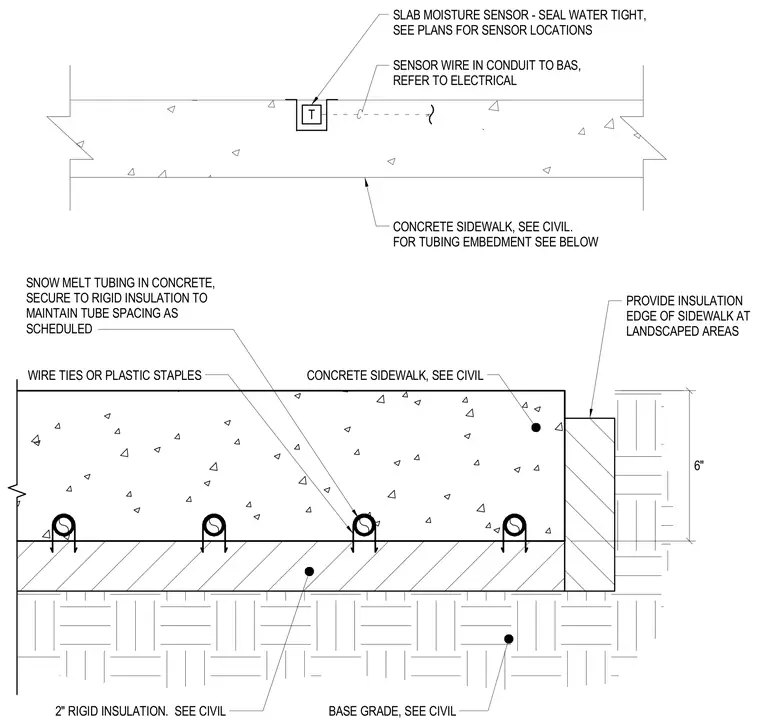

The assembly consists of a concrete sidewalk poured over two inches of rigid insulation and base grade, with embedded snow melt tubing secured by wire ties or plastic staples to maintain scheduled spacing. A slab moisture sensor is sealed watertight within the concrete, with its sensor wire running in conduit to the building automation system. Edge insulation is provided at the perimeter of the sidewalk where it meets landscaped areas.
