Wall-Mounted Fan Coil

Materials

Elements

About this detail

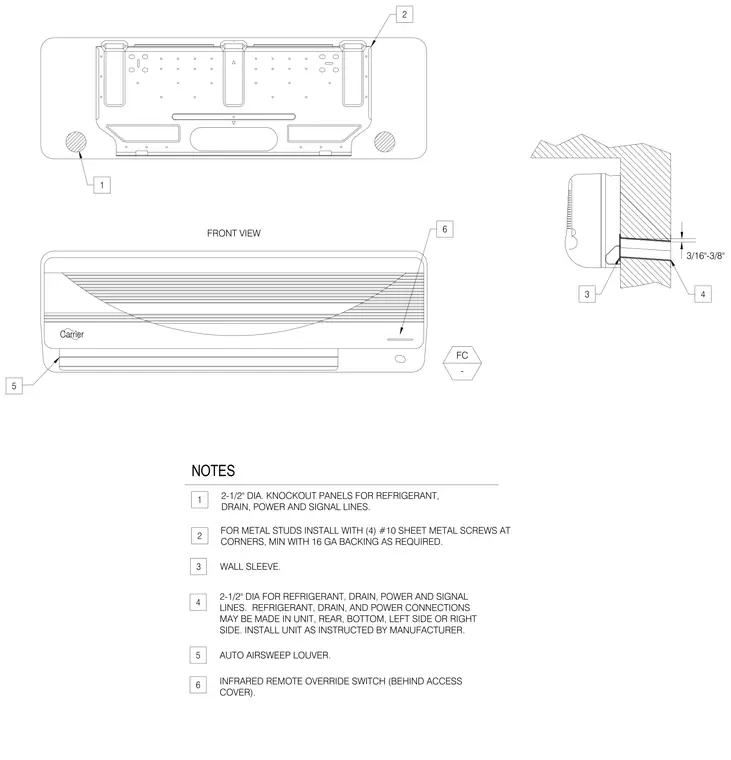

A wall-mounted fan coil unit is secured to metal studs using four number ten sheet metal screws at the corners with a minimum sixteen gauge backing as required. The assembly includes two-and-a-half-inch diameter knockout panels for refrigerant, drain, power, and signal lines routed through a wall sleeve. Refrigerant, drain, and power connections may be made within the unit, or from the rear, bottom, left, or right sides per manufacturer instructions. The unit features an auto airsweep louver and an infrared remote override switch located behind the access cover.
