Mechanical · M-THCY5

Evaporator Piping Connection Schematic with Valves and Accessories

Materials

Elements

Roofs Insulation Drainage Connections / Plates

About this detail

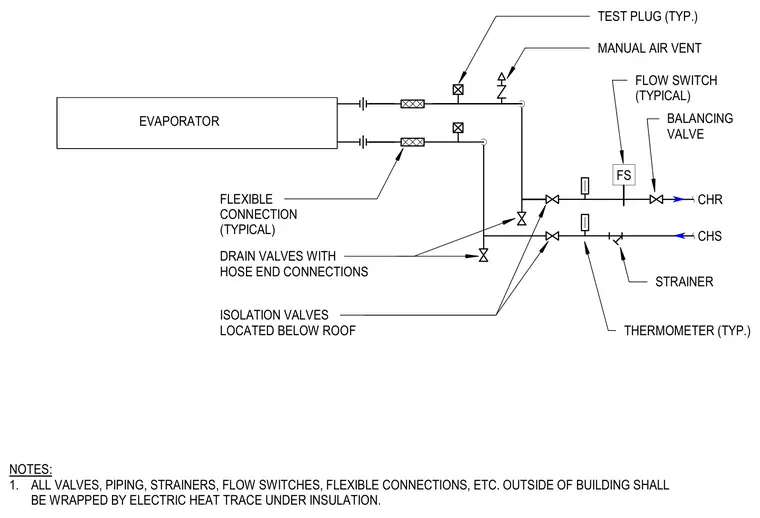

This diagram shows the piping connections and accessory layout for an evaporator connected to chilled water return (CHR) and chilled water supply (CHS) lines. Flexible connections are installed on both lines directly leaving the evaporator. Isolation valves, drain valves with hose end connections, thermometers, test plugs, manual air vents, strainers, balancing valves, and flow switches are incorporated along the piping run. All valves, piping, strainers, flow switches, and flexible connections located outside the building are wrapped with electric heat trace under insulation.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
