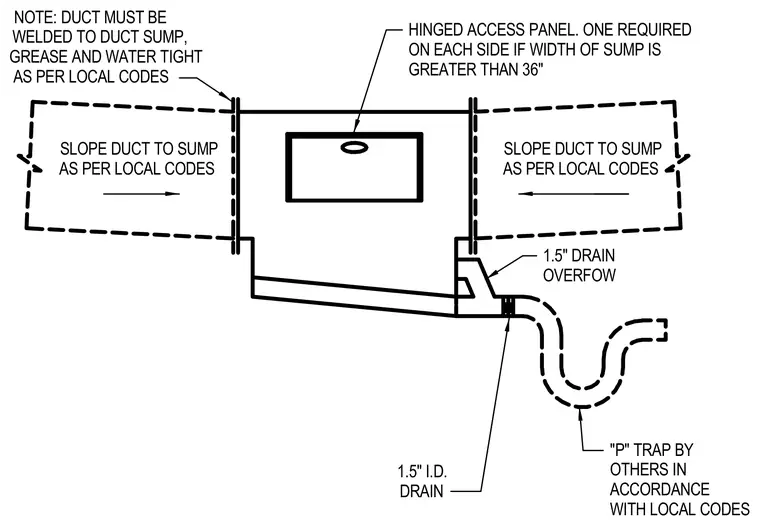

The duct is sloped toward a central sump in accordance with local codes. A hinged access panel is required on each side if the width of the sump is greater than 36 inches. The duct must be welded to the duct sump to remain grease and water-tight per local codes. A 1.5-inch inside diameter drain and overflow connect to a P-trap provided by others.
DRAIN 1.5" I.D. WITH LOCAL CODES ACCORDANCE OTHERS IN "P" TRAP BY OVERFOW 1.5" DRAIN AS PER LOCAL CODES SLOPE DUCT TO SUMP AS PER LOCAL CODES SLOPE DUCT TO SUMP AS PER LOCAL CODES GREASE AND WATER TIGHT WELDED TO DUCT SUMP, NOTE: DUCT MUST BE GREATER THAN 36" ON EACH SIDE IF WIDTH OF SUMP IS HINGED ACCESS PANEL. ONE REQUIRED
