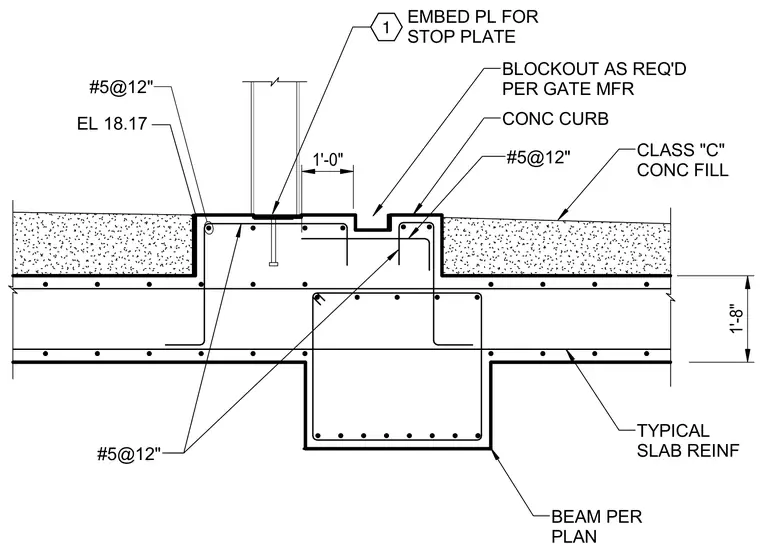

An embed plate for a stop plate anchors into a concrete curb cast atop a structural concrete slab and beam assembly. The slab is reinforced with number 5 bars spaced at twelve inches on center and Class C concrete fill. A blockout is provided per the gate manufacturer requirements, with a one-foot offset dimension and elevation marker 18.17. The supporting beam is sized per plan with a total structural depth of one foot eight inches.
#5@12" 1'-0" 1'-8" BEAM PER PLAN TYPICAL SLAB REINF CLASS "C" CONC FILL CONC CURB BLOCKOUT AS REQ'D PER GATE MFR EL 18.17 #5@12" #5@12" 1 EMBED PL FOR STOP PLATE
