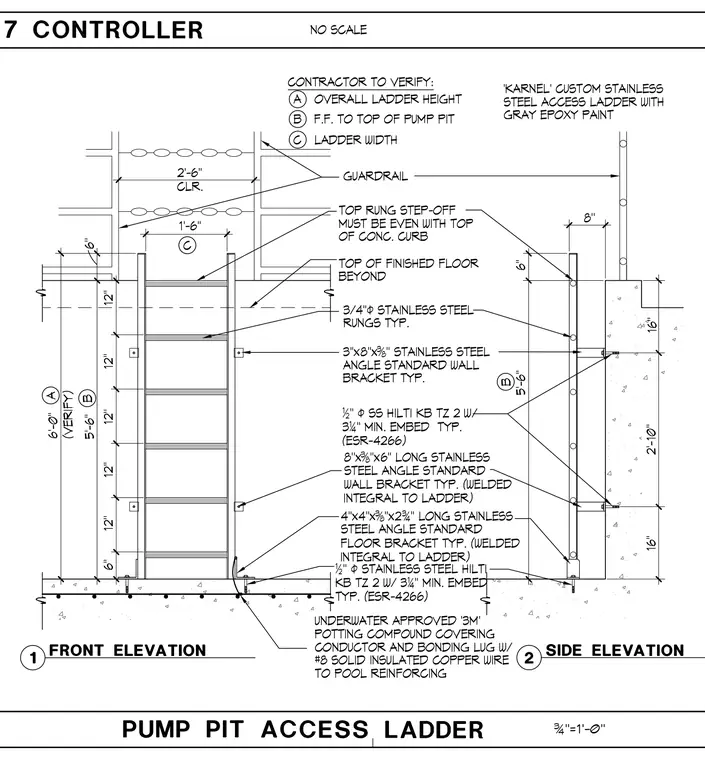

This elevation detail shows a custom stainless steel access ladder with a gray epoxy paint finish mounted to a concrete pump pit wall. The ladder features three-quarter-inch diameter stainless steel rungs spaced at twelve inches typically, with the top rung step-off aligned flush with the top of the concrete curb. Standard wall brackets constructed from three-inch by eight-inch by three-eighths-inch stainless steel angles are welded integral to the ladder and anchored to the concrete wall using one-half-inch diameter stainless steel expansion anchors with a three-and-three-quarters-inch minimum embedment. Floor brackets made from four-inch by four-inch by three-eighths-inch by two-and-one-quarter-inch long stainless steel angles secure the base to the slab using similar expansion anchors. An underwater-approved potting compound covers a bonding lug and a number eight solid insulated copper wire connected to the pool reinforcing.
NO SCALE [''=1'-0'' 1'-6'' 6'' C \'' ~ STAINLESS STEEL HILTI KB TZ 2 W/ 3|'' MIN. EMBED TYP. (ESR-4266) 5'-6'' 8'' 3/4''~ STAINLESS STEEL RUNGS TYP. 6'' 5'-6'' B \'' ~ SS HILTI KB TZ 2 W/ 3|'' MIN. EMBED TYP. (ESR-4266) 6'-0'' A (VERIFY) TOP RUNG STEP-OFF MUST BE EVEN WITH TOP OF CONC. CURB A B LADDER WIDTH OVERALL LADDER HEIGHT CONTRACTOR TO VERIFY: C F.F. TO TOP OF PUMP PIT GUARDRAIL 2'-6'' CLR. B 16'' 2'-10'' 16'' 12'' 12'' 12'' 12'' 12'' 6'' TOP OF FINISHED FLOOR BEYOND 'KARNEL' CUSTOM STAINLESS STEEL ACCESS LADDER WITH GRAY EPOXY PAINT 3"x8''x{'' STAINLESS STEEL ANGLE STANDARD WALL BRACKET TYP. 8''x{''x6'' LONG STAINLESS STEEL ANGLE STANDARD WALL BRACKET TYP. (WELDED INTEGRAL TO LADDER) 4''x4''x{''x2['' LONG STAINLESS STEEL ANGLE STANDARD FLOOR BRACKET TYP. (WELDED INTEGRAL TO LADDER) UNDERWATER APPROVED '3M' POTTING COMPOUND COVERING CONDUCTOR AND BONDING LUG W/ #8 SOLID INSULATED COPPER WIRE TO POOL REINFORCING
