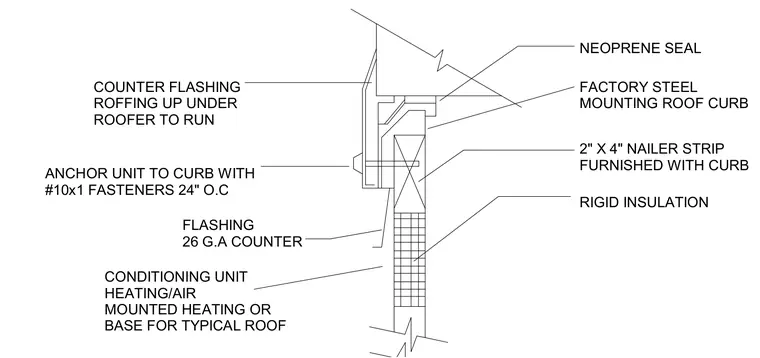

A factory steel mounting roof curb sits atop the roof assembly over rigid insulation and a 2-inch by 4-inch wood nailer strip furnished with the curb. A neoprene seal provides a weather-tight joint between the equipment base and the curb structure. Twenty-six gauge counter flashing extends down over the exterior, anchored to the curb unit with number 10 by 1-inch fasteners spaced at 24 inches on center.
COUNTER FLASHING ROFFING UP UNDER ROOFER TO RUN ANCHOR UNIT TO CURB WITH #10x1 FASTENERS 24" O.C FLASHING 26 G.A COUNTER CONDITIONING UNIT HEATING/AIR MOUNTED HEATING OR BASE FOR TYPICAL ROOF RIGID INSULATION 2" X 4" NAILER STRIP FURNISHED WITH CURB FACTORY STEEL MOUNTING ROOF CURB NEOPRENE SEAL
