Pump Piping Connections and Mounting Detail

Materials

Elements

About this detail

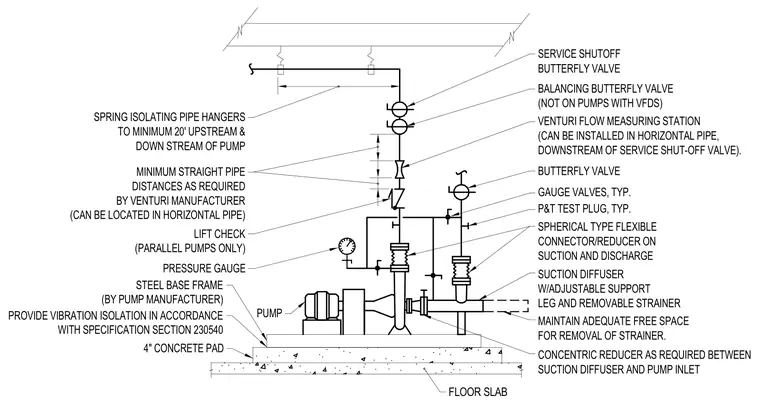

A base-mounted pump rests on a four-inch concrete pad atop the floor slab, supported by a steel base frame with vibration isolation. The suction line features a suction diffuser with an adjustable support leg and removable strainer, connected to the pump inlet with a concentric reducer and spherical type flexible connector. The discharge line incorporates a pressure gauge, gauge valves, a test plug, a lift check valve for parallel pumps, a venturi flow measuring station, and balancing and service shutoff butterfly valves. Spring isolating pipe hangers support the overhead piping maintaining minimum straight pipe distances upstream and downstream of the pump.
