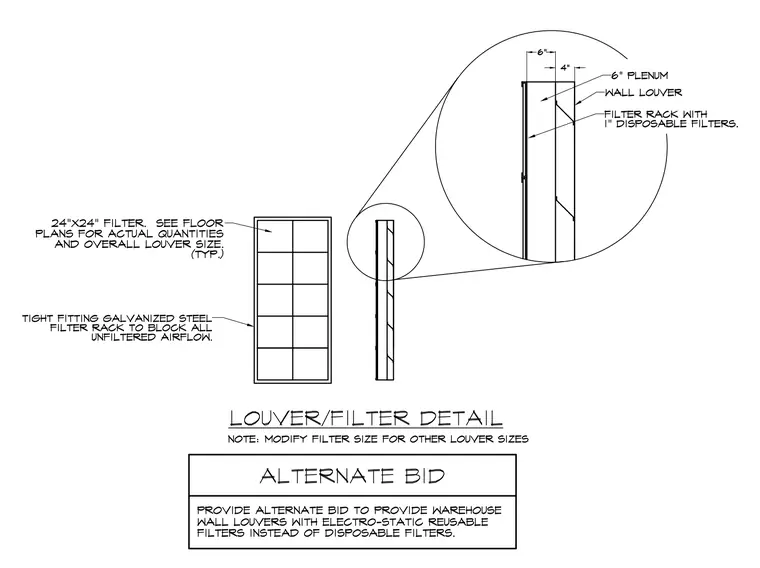

A wall louver assembly equipped with a tight-fitting galvanized steel filter rack designed to block unfiltered airflow. The system features a six-inch plenum space and a filter rack holding one-inch disposable filters behind twenty-four-inch by twenty-four-inch filters, with actual quantities and overall louver sizes determined per floor plans. A note specifies to modify the filter size for other louver sizes. An alternate bid note indicates providing electrostatic reusable filters instead of disposable filters for warehouse wall louvers.
