Mechanical · M-T6VW5

In-Line Pump Detail

Elements

About this detail

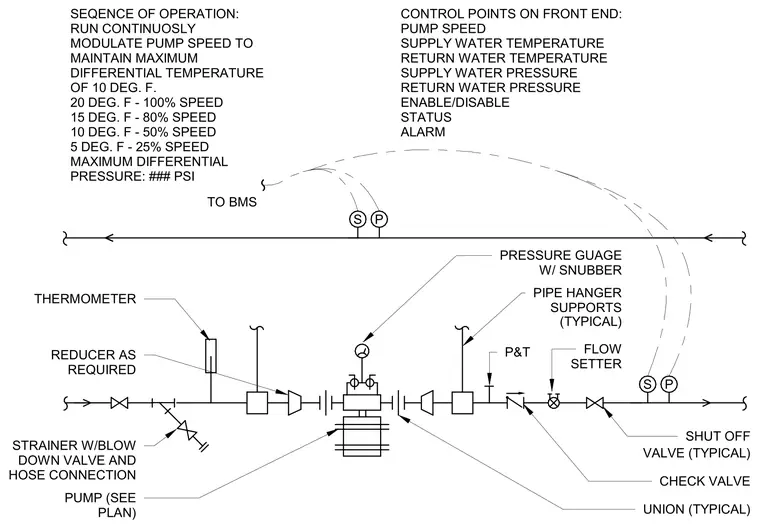

An in-line pump is installed with typical unions, reducers, and shut-off valves on supply and return lines sized per plan. A strainer with blow-down valve and hose connection precedes the pump on the inlet side, while a check valve, flow setter, and pressure/temperature port follow on the discharge side. Typical pipe hanger supports suspend the piping assembly. Thermometers and pressure gauges with snubbers monitor operating conditions, and sensor connections route signals to the building management system. The sequence of operation specifies continuous running with modulated pump speed based on differential temperature and pressure parameters.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
