Mechanical · M-T5ACG

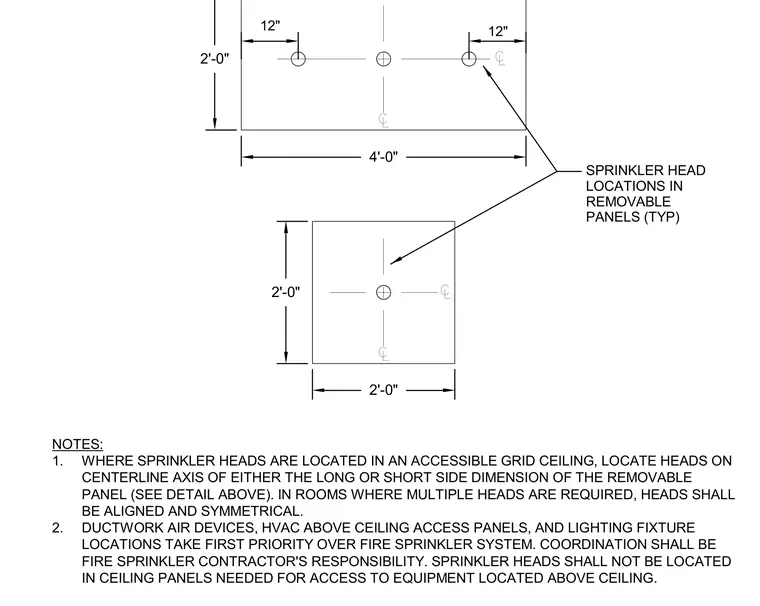

Fire Sprinkler Head Location in Lay-In Ceiling Panel

Elements

About this detail

Sprinkler heads located within an accessible grid ceiling are positioned on the centerline axis of either the long or short side dimension of the removable panel. In rooms requiring multiple heads, the units must be aligned and symmetrical. Ductwork air devices, heating, ventilation, and air conditioning above-ceiling access panels, and lighting fixtures take first priority over the fire sprinkler system, and coordination is the fire sprinkler contractor's responsibility. Sprinkler heads are prohibited from being located in ceiling panels needed for access to equipment located above the ceiling.
