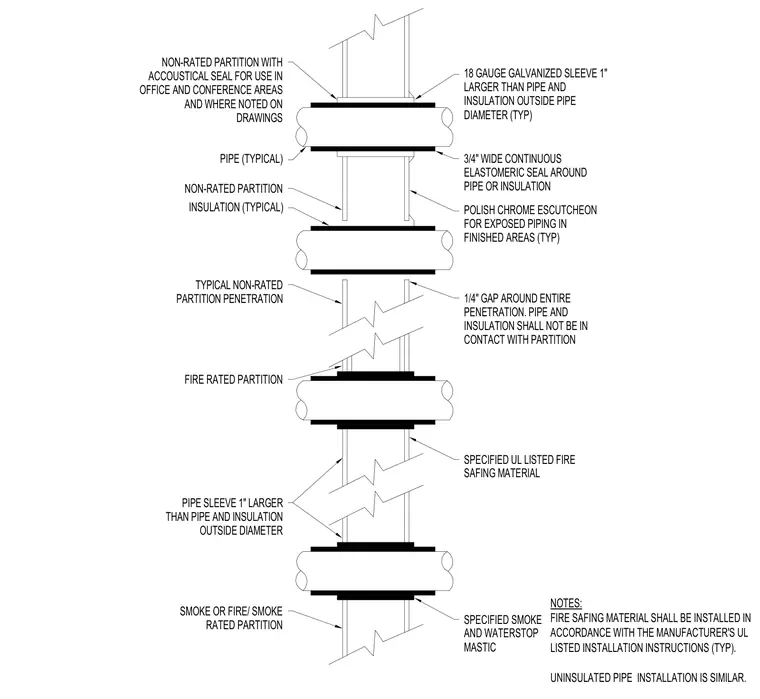

Pipe penetrations pass through non-rated and fire-rated wall partitions. An eighteen gauge galvanized steel sleeve is sized one inch larger than the pipe and insulation outside diameter to maintain a one-quarter inch gap around the entire penetration. For non-rated partitions, a three-quarter inch wide continuous elastomeric seal or polished chrome escutcheon is applied around the piping in finished areas. Fire-rated partitions require specified UL listed fire safing material combined with specified smoke and waterstop mastic installed per manufacturer instructions. Uninsulated pipe installations follow a similar configuration.
NON-RATED PARTITION WITH ACCOUSTICAL SEAL FOR USE IN OFFICE AND CONFERENCE AREAS AND WHERE NOTED ON DRAWINGS PIPE (TYPICAL) INSULATION (TYPICAL) NON-RATED PARTITION TYPICAL NON-RATED PARTITION PENETRATION FIRE RATED PARTITION PIPE SLEEVE 1" LARGER THAN PIPE AND INSULATION OUTSIDE DIAMETER SMOKE OR FIRE/ SMOKE RATED PARTITION 18 GAUGE GALVANIZED SLEEVE 1" LARGER THAN PIPE AND INSULATION OUTSIDE PIPE DIAMETER (TYP) 3/4" WIDE CONTINUOUS ELASTOMERIC SEAL AROUND PIPE OR INSULATION POLISH CHROME ESCUTCHEON FOR EXPOSED PIPING IN FINISHED AREAS (TYP) 1/4" GAP AROUND ENTIRE PENETRATION. PIPE AND INSULATION SHALL NOT BE IN CONTACT WITH PARTITION SPECIFIED UL LISTED FIRE SAFING MATERIAL SPECIFIED SMOKE AND WATERSTOP MASTIC NOTES: FIRE SAFING MATERIAL SHALL BE INSTALLED IN ACCORDANCE WITH THE MANUFACTURER'S UL LISTED INSTALLATION INSTRUCTIONS (TYP). UNINSULATED PIPE INSTALLATION IS SIMILAR.
