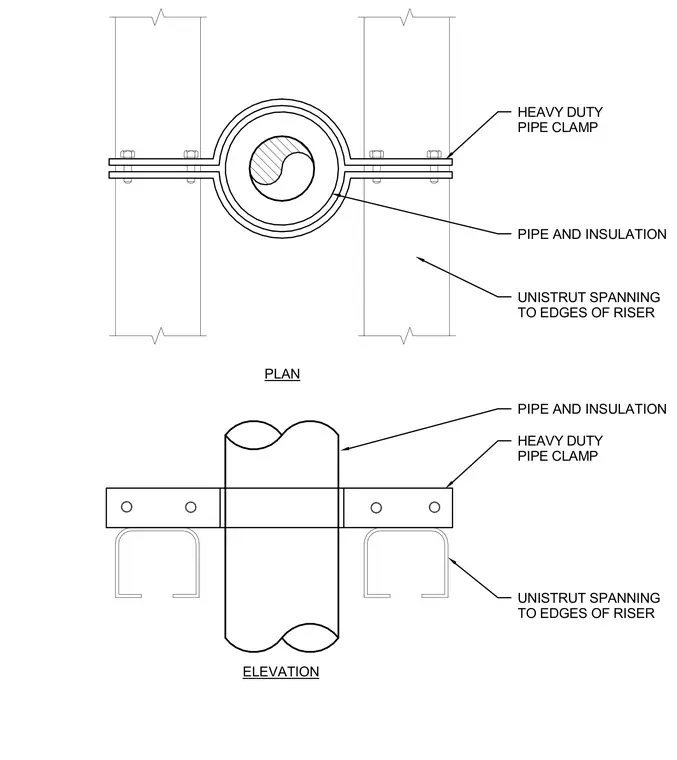

An insulated pipe riser is secured by a heavy-duty pipe clamp fastened with bolted connections on both sides. The pipe clamp rests on Unistrut framing channels spanning across the edges of the riser opening. The Unistrut channel provides structural support to transfer the vertical load of the pipe riser.
PIPE AND INSULATION HEAVY DUTY PIPE CLAMP PIPE AND INSULATION HEAVY DUTY PIPE CLAMP UNISTRUT SPANNING TO EDGES OF RISER UNISTRUT SPANNING TO EDGES OF RISER PLAN ELEVATION
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
