Mechanical · M-T2JMB

Branch Take-Off

About this detail

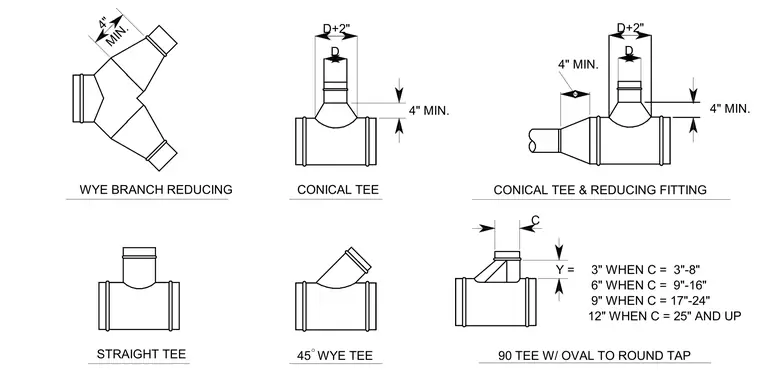

HVAC ductwork branch take-off configurations consist of wye branch reducing, straight tee, conical tee, 45-degree wye tee, conical tee and reducing fitting, and 90-degree tee with oval-to-round tap. Each configuration is annotated with specific geometric parameters and minimum clearance dimensions such as a four-inch minimum spacing, tap sizing relative to main diameter D plus two inches, and variable offset dimensions Y corresponding to dimension C ranging from three inches up to twenty-five inches and greater.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
