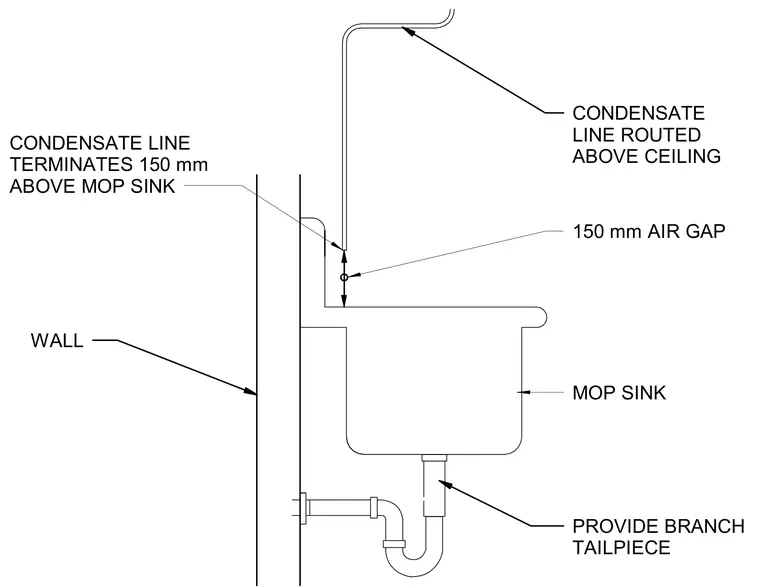

The condensate line routes above the ceiling and terminates one hundred fifty millimeters above the mop sink. A required branch tailpiece connects the mop sink to the plumbing waste line against the wall, maintaining a one hundred fifty millimeter air gap to prevent backflow.
PROVIDE BRANCH TAILPIECE CONDENSATE LINE ROUTED ABOVE CEILING WALL CONDENSATE LINE TERMINATES 150 mm ABOVE MOP SINK MOP SINK 150 mm AIR GAP
