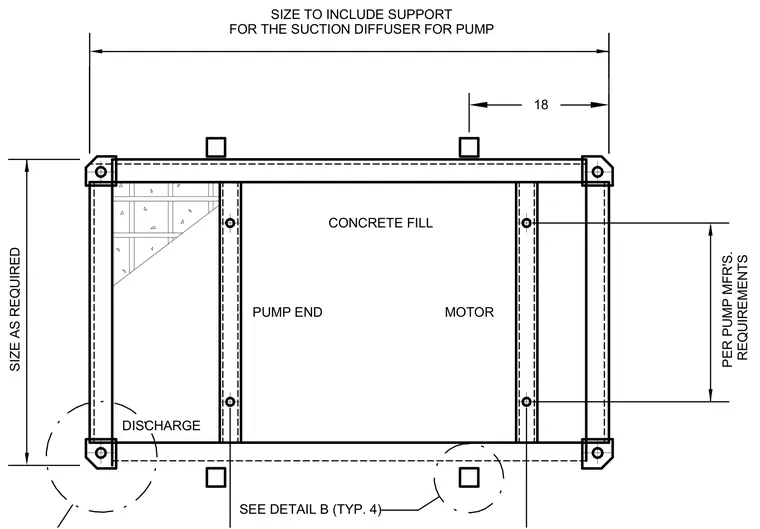

This plan view shows a structural steel pump skid base filled with concrete and sized to support both the pump end and motor. The base incorporates framing sized to include support for the suction diffuser per pump manufacturer's requirements, with discharge connections located as indicated. Four typical mounting locations reference Detail B, and eighteen inches of clearance or spacing is provided.
SIZE AS REQUIRED DISCHARGE SEE DETAIL B (TYP. 4) PUMP END MOTOR SIZE TO INCLUDE SUPPORT FOR THE SUCTION DIFFUSER FOR PUMP CONCRETE FILL 18 PER PUMP MFR'S. REQUIREMENTS
