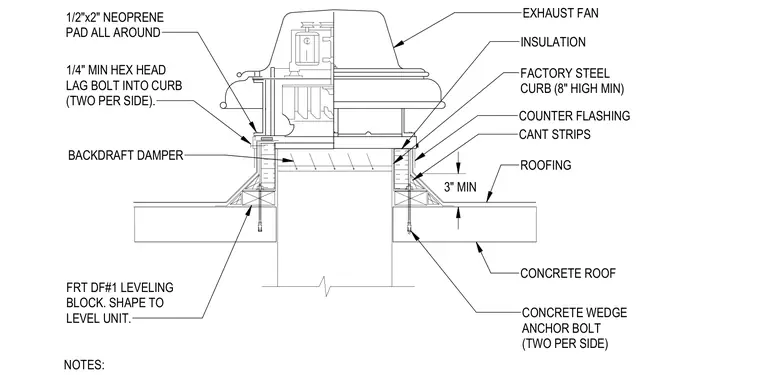

An exhaust fan mounts onto a minimum eight-inch high factory steel curb supported by a concrete roof structure. A one-half by two-inch neoprene pad sits all around beneath the unit, secured with one-quarter-inch minimum hex head lag bolts into the curb using two per side. Three-inch minimum concrete wedge anchor bolts secure the assembly with two per side, resting on a fire-retardant Douglas Fir number one leveling block shaped to level the unit. Cant strips and counter flashing protect the roofing intersection. A backdraft damper installs directly below the exhaust fan inside the curb opening.
3" MIN CONCRETE WEDGE ANCHOR BOLT (TWO PER SIDE) NOTES: 1/2"x2" NEOPRENE PAD ALL AROUND 1/4" MIN HEX HEAD LAG BOLT INTO CURB (TWO PER SIDE). BACKDRAFT DAMPER FRT DF#1 LEVELING BLOCK. SHAPE TO LEVEL UNIT. CONCRETE ROOF ROOFING CANT STRIPS COUNTER FLASHING FACTORY STEEL CURB (8" HIGH MIN) INSULATION EXHAUST FAN
