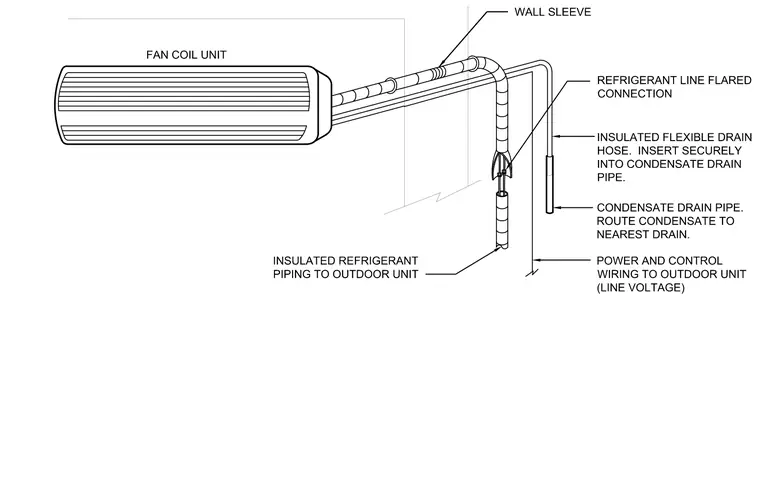

The assembly details a wall-mounted fan coil unit connected through a wall sleeve to exterior services. Insulated refrigerant piping extends to the outdoor unit via flared connections. An insulated flexible drain hose inserts securely into the condensate drain pipe, which routes condensate to the nearest drain. Line voltage power and control wiring also connect the indoor fan coil unit to the outdoor unit.
WALL SLEEVE REFRIGERANT LINE FLARED CONNECTION INSULATED FLEXIBLE DRAIN HOSE. INSERT SECURELY INTO CONDENSATE DRAIN PIPE. POWER AND CONTROL WIRING TO OUTDOOR UNIT (LINE VOLTAGE) CONDENSATE DRAIN PIPE. ROUTE CONDENSATE TO NEAREST DRAIN. INSULATED REFRIGERANT PIPING TO OUTDOOR UNIT FAN COIL UNIT
