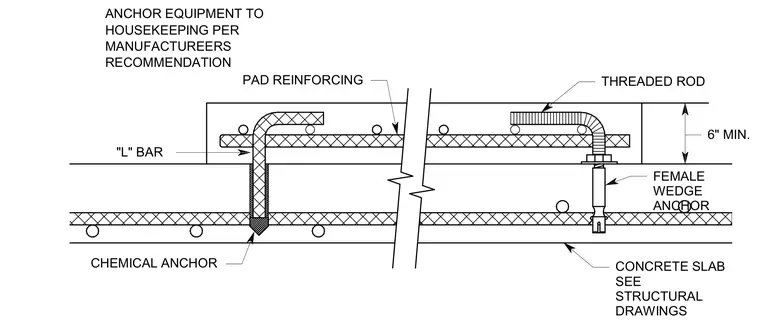

A concrete housekeeping pad is mounted on a structural concrete slab with a minimum thickness of 6 inches. The pad is reinforced with pad reinforcing bars and tied to the structural slab using embedded L-shaped reinforcing bars and chemical anchors, as well as female wedge anchors and threaded rods. Equipment is anchored to the housekeeping pad according to the manufacturer's recommendations.
ANCHOR EQUIPMENT TO HOUSEKEEPING PER MANUFACTUREERS RECOMMENDATION CONCRETE SLAB SEE STRUCTURAL DRAWINGS FEMALE WEDGE ANCHOR 6" MIN. THREADED ROD PAD REINFORCING "L" BAR CHEMICAL ANCHOR
