Mechanical · M-SNVXF

Water Treatment Detail

Elements

About this detail

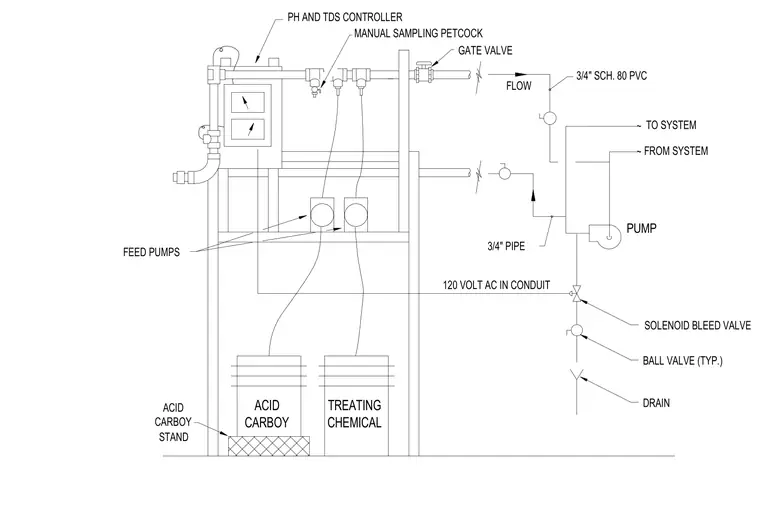

This water treatment assembly features a pH and TDS controller mounted on an acid carboy stand, with feed pumps supplying treating chemicals from acid carboys below. The system incorporates three-quarter-inch schedule 80 PVC piping routing fluid to and from the main system, including a gate valve, manual sampling petcock, and a solenoid bleed valve powered by 120 volt alternating current in conduit. Additional components include typical ball valves for isolation and drainage connections. Flow directions and feed lines are clearly designated to link the carboys, pumps, and controller to the process piping.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
