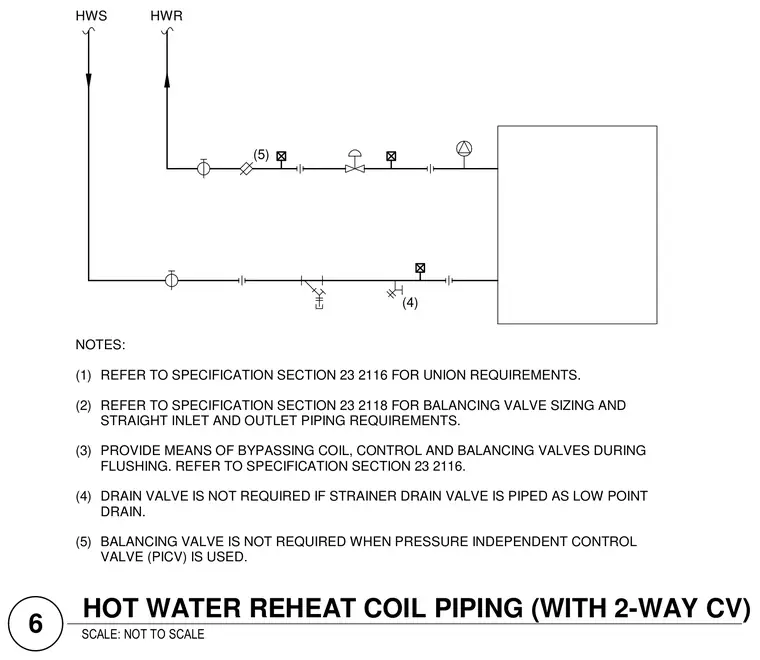

Hot Water Reheat Coil Piping (With 2-Way CV)

Elements

About this detail

Piping arrangement for a hot water reheat coil with a two-way control valve connected to hot water supply and hot water return lines. The supply line includes a thermometer, unions, a two-way control valve, a balancing valve, and a pressure independent control valve option. The return line features a strainer with a drain valve and isolation valves. Union requirements and balancing valve sizing must follow the mechanical specifications.
