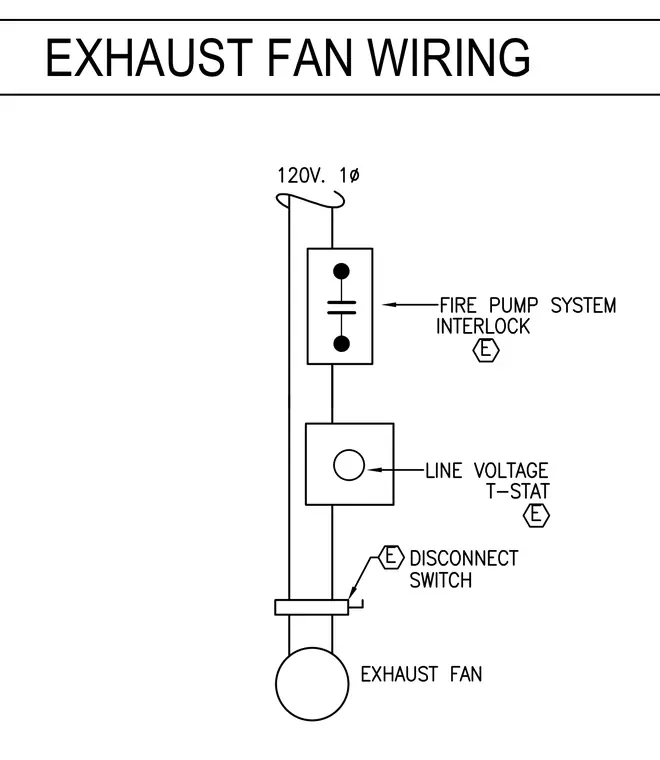

An electrical power feed of 120 volts single phase supplies the exhaust fan circuit. A fire pump system interlock and a line voltage thermostat are wired in series along the circuit path. A disconnect switch is positioned immediately upstream of the exhaust fan unit.
