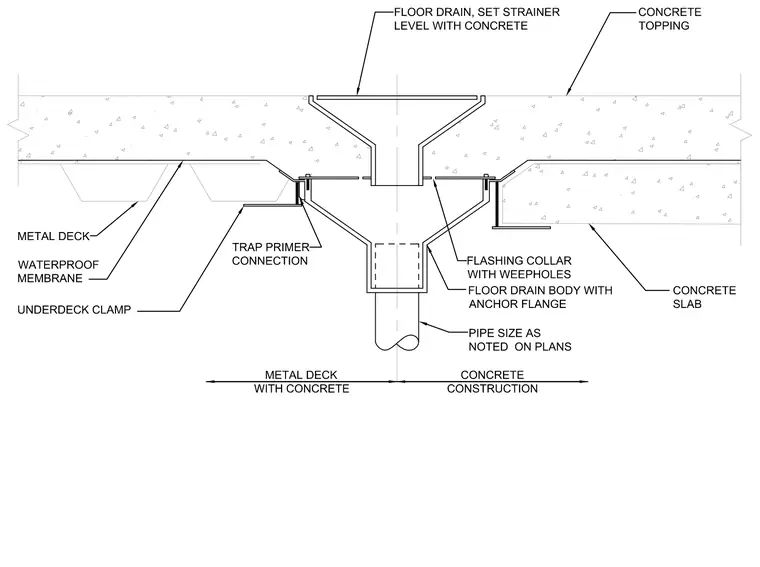

The floor drain body with anchor flange is set flush with the concrete topping and supported by a metal deck or concrete slab construction. A flashing collar with weepholes surrounds the drain body above a waterproof membrane. An underdeck clamp secures the assembly from below, and a trap primer connection ties into the side of the drain body. The waste pipe exits downward with a diameter sized per plans.
FLOOR DRAIN, SET STRAINER LEVEL WITH CONCRETE CONCRETE TOPPING CONCRETE SLAB FLOOR DRAIN BODY WITH ANCHOR FLANGE FLASHING COLLAR WITH WEEPHOLES PIPE SIZE AS NOTED ON PLANS WATERPROOF MEMBRANE METAL DECK METAL DECK WITH CONCRETE CONCRETE CONSTRUCTION TRAP PRIMER CONNECTION UNDERDECK CLAMP
