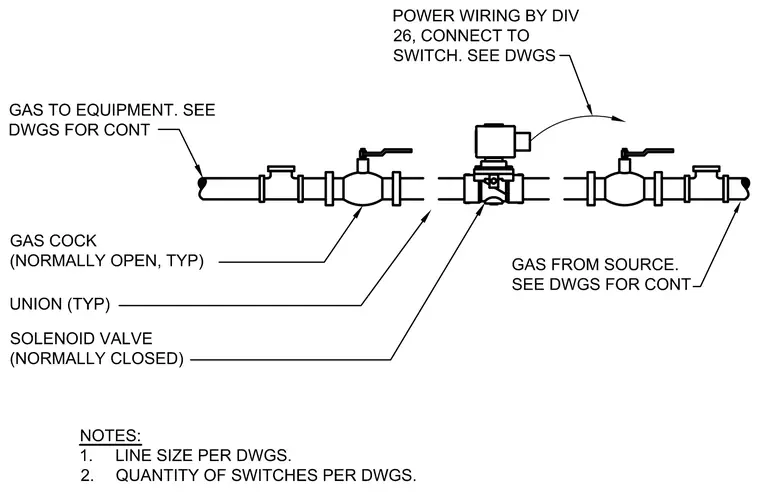

The natural gas supply line runs from the source through a union and a normally open gas cock typical to the piping arrangement. A normally closed solenoid valve is integrated into the line, with power wiring connected from Division 26 per the drawings. Line sizing and switch quantities are determined per the project drawings.
