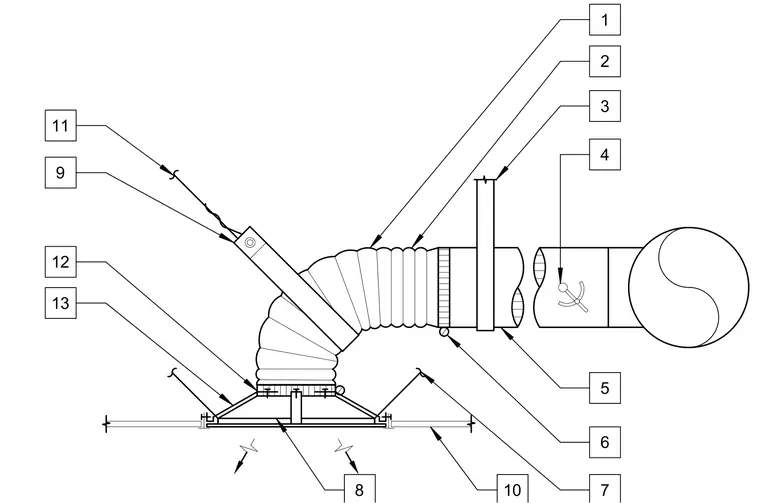

Flexible ductwork connects to a ceiling diffuser assembly, supported by a vertical duct hanger and secured with draw bands. A butterfly damper is integrated into the rigid supply duct upstream of the flexible connection. Seismic or stabilization bracing wire restrains the diffuser boot. The entire assembly integrates into the ceiling grid system.
