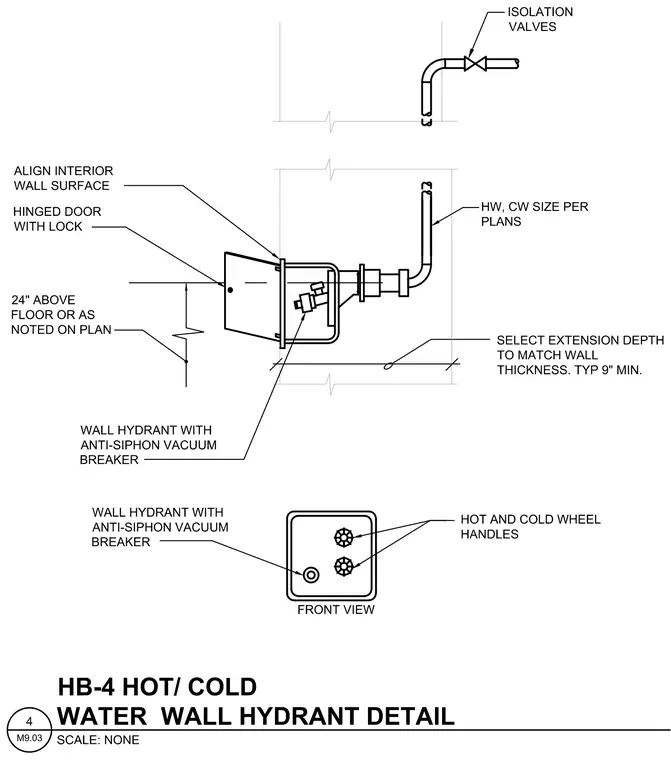

A wall hydrant with an anti-siphon vacuum breaker installs through an exterior wall with hot and cold water supply piping sized per plans. Isolation valves are installed on the supply lines upstream. The hydrant features a hinged door with a lock and is positioned twenty-four inches above the floor or as noted on the plans, with the interior wall surface aligned. The extension depth must be selected to match the wall thickness with a typical nine-inch minimum. A front view incorporates the hot and cold wheel handles alongside the hydrant assembly.
