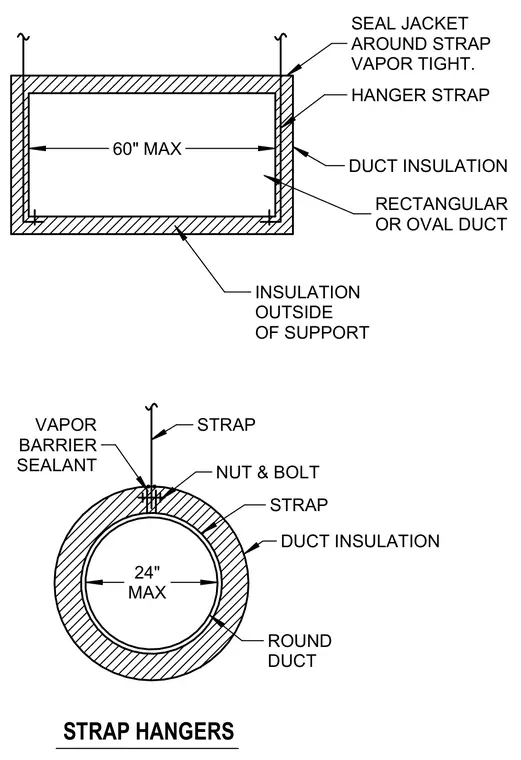

Rectangular, oval, or round HVAC ducts are supported by hanger straps enclosed within exterior duct insulation. The insulation is installed outside of the support for rectangular ducts, with a vapor-tight seal jacket applied around the strap. For round ducts, the strap is joined with a nut and bolt, and vapor barrier sealant is applied at the penetration. Maximum spacing dimensions limit rectangular ducts to sixty inches and round ducts to twenty-four inches.
STRAP HANGERS ROUND DUCT DUCT INSULATION STRAP NUT & BOLT STRAP VAPOR BARRIER SEALANT DUCT INSULATION RECTANGULAR OR OVAL DUCT HANGER STRAP SEAL JACKET AROUND STRAP VAPOR TIGHT. INSULATION OUTSIDE OF SUPPORT 60" MAX 24" MAX
