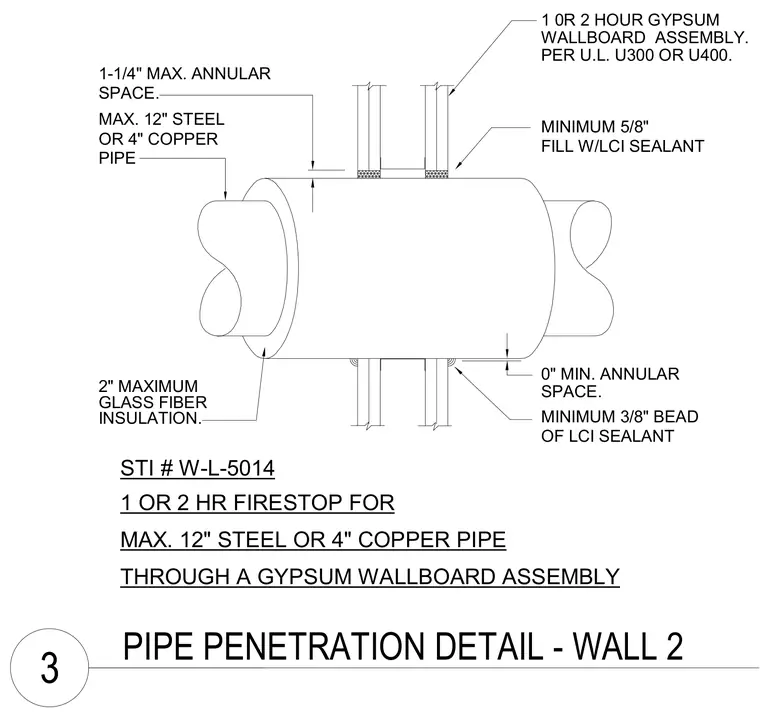

A maximum 12-inch steel pipe or 4-inch copper pipe penetrates a 1- or 2-hour rated gypsum wallboard assembly conforming to U.L. U300 or U400. The annular space ranges from 0 inches minimum to 1-1/4 inches maximum around the pipe. The assembly incorporates a minimum 5/8-inch fill of LCI sealant and a minimum 3/8-inch bead of LCI sealant. A maximum of 2 inches of glass fiber insulation surrounds the pipe in accordance with STI system number W-L-5014.
MAX. 12" STEEL OR 4" COPPER PIPE 1 OR 2 HR FIRESTOP FOR THROUGH A GYPSUM WALLBOARD ASSEMBLY GLASS FIBER INSULATION. STI # W-L-5014 OR 4" COPPER 1-1/4" MAX. ANNULAR MAX. 12" STEEL SPACE. 0" MIN. ANNULAR SPACE. 2" MAXIMUM MINIMUM 5/8" OF LCI SEALANT MINIMUM 3/8" BEAD FILL W/LCI SEALANT 1 0R 2 HOUR GYPSUM WALLBOARD ASSEMBLY. PER U.L. U300 OR U400. PIPE PIPE PENETRATION DETAIL - WALL 2 3
