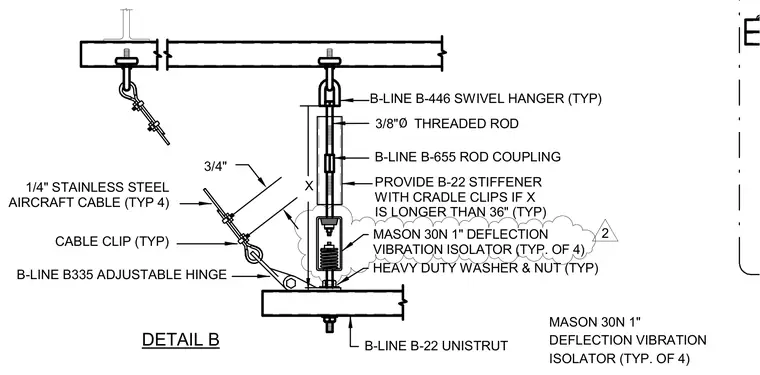

Suspended equipment or ductwork connects to the overhead structure using a three-eighths-inch diameter threaded rod joined by a B-Line B-655 rod coupling and hung from a B-Line B-446 swivel hanger. A Mason 30N one-inch deflection vibration isolator secures to a B-Line B-22 Unistrut channel at the support point using heavy-duty washers and nuts. A B-Line B-22 stiffener with cradle clips must be provided if dimension X exceeds thirty-six inches. Lateral seismic bracing is achieved using four one-quarter-inch stainless steel aircraft cables secured with cable clips and tied back to a B-Line B335 adjustable hinge.
DETAIL B 3/4" B-LINE B-446 SWIVEL HANGER (TYP) 3/8" Ø THREADED ROD HEAVY DUTY WASHER & NUT (TYP) B-LINE B-22 UNISTRUT B-LINE B335 ADJUSTABLE HINGE 1/4" STAINLESS STEEL AIRCRAFT CABLE (TYP 4) PROVIDE B-22 STIFFENER WITH CRADLE CLIPS IF X IS LONGER THAN 36" (TYP) X CABLE CLIP (TYP) MASON 30N 1" DEFLECTION VIBRATION ISOLATOR (TYP. OF 4) MASON 30N 1" DEFLECTION VIBRATION ISOLATOR (TYP. OF 4) B-LINE B-655 ROD COUPLING 2
