A ceiling exhaust fan is installed within a lowered ceiling plenum and connected to an exhaust duct. The square-to-round transition and attachment screws provide clearance for the backdraft damper to fully open. The exhaust duct has a twenty-six gauge minimum thickness and penetrates the ceiling assembly. The duct penetration is sealed in accordance with IBC section 717.6.2.1 and protected with UL fire-stopped assembly UL-F-C-7014. The basis of design is a Panasonic Whisper Green fan.

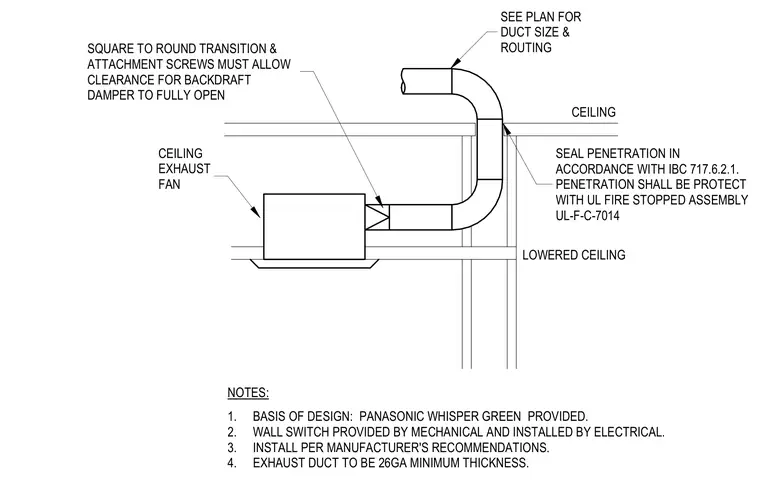

SQUARE TO ROUND TRANSITION & ATTACHMENT SCREWS MUST ALLOW CLEARANCE FOR BACKDRAFT DAMPER TO FULLY OPEN SEE PLAN FOR DUCT SIZE & ROUTING CEILING EXHAUST FAN CEILING LOWERED CEILING NOTES: 1. BASIS OF DESIGN: PANASONIC WHISPER GREEN PROVIDED. 2. WALL SWITCH PROVIDED BY MECHANICAL AND INSTALLED BY ELECTRICAL. 3. INSTALL PER MANUFACTURER'S RECOMMENDATIONS. 4. EXHAUST DUCT TO BE 26GA MINIMUM THICKNESS. SEAL PENETRATION IN ACCORDANCE WITH IBC 717.6.2.1. PENETRATION SHALL BE PROTECT WITH UL FIRE STOPPED ASSEMBLY UL-F-C-7014
