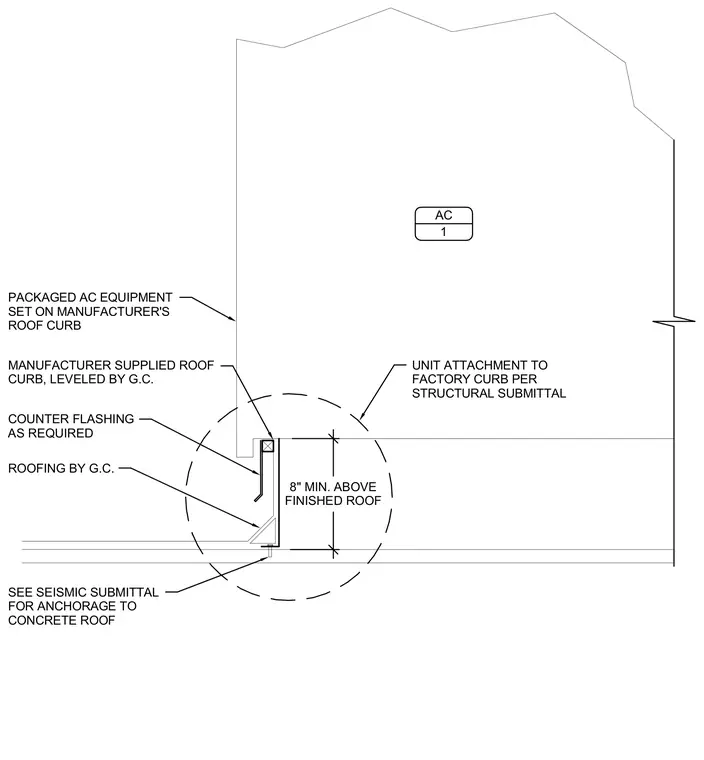

A packaged air conditioning unit is set on a manufacturer-supplied roof curb leveled by the general contractor and positioned at least eight inches above the finished roof. Counter flashing is installed as required, and roofing is applied by the general contractor. Unit attachment to the factory curb follows the structural submittal, and anchorage to the concrete roof follows the seismic submittal.
8" MIN. ABOVE FINISHED ROOF PACKAGED AC EQUIPMENT SET ON MANUFACTURER'S ROOF CURB UNIT ATTACHMENT TO FACTORY CURB PER STRUCTURAL SUBMITTAL MANUFACTURER SUPPLIED ROOF CURB, LEVELED BY G.C. ROOFING BY G.C. SEE SEISMIC SUBMITTAL FOR ANCHORAGE TO CONCRETE ROOF COUNTER FLASHING AS REQUIRED AC 1
