Linear Slot Diffuser Detail

Elements

About this detail

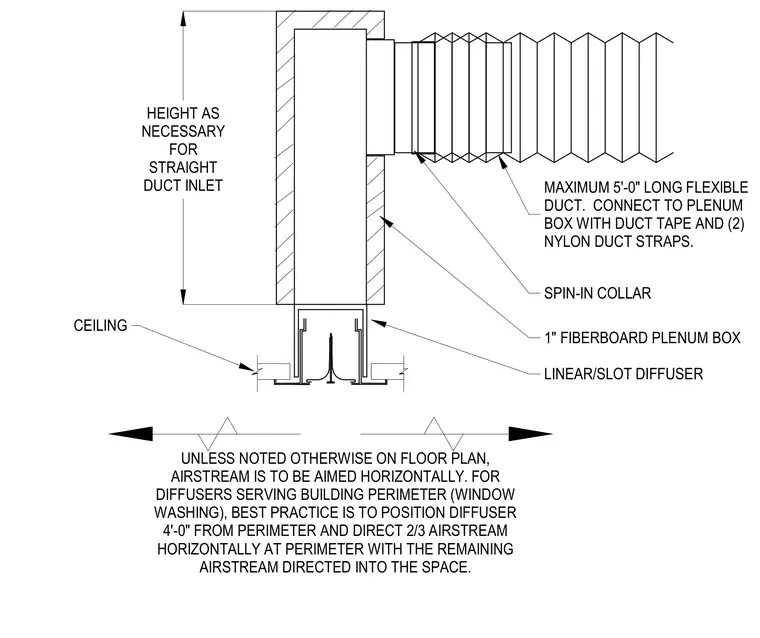

A linear slot diffuser integrates into the ceiling plane and connects downward to a one-inch fiberboard plenum box. A spin-in collar on the side of the plenum box receives a maximum five-foot-long flexible duct, secured with duct tape and two nylon duct straps. The plenum box height is adjusted as necessary to ensure a straight duct inlet. Unless noted otherwise on the floor plan, the supply airstream is aimed horizontally. For diffusers serving the building perimeter near windows, the diffuser is positioned four feet from the perimeter, directing two-thirds of the airstream horizontally at the perimeter and the remaining airstream into the space.
