Constant Airflow Volume Controller (CAVC) Installation Detail

Materials

Elements

About this detail

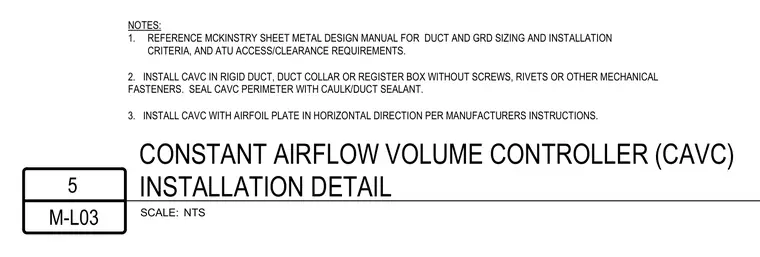

Installation notes specify mounting the constant airflow volume controller in rigid duct, duct collar, or register box without screws, rivets, or other mechanical fasteners. The perimeter of the CAVC is sealed with caulk or duct sealant. The airfoil plate is installed in a horizontal direction per manufacturer instructions, referencing the McKinstry Sheet Metal Design Manual for duct and grille sizing, installation criteria, and terminal unit access and clearance requirements.
