Mechanical · M-RW3XF

Bypass Valve (Normally Closed)

Elements

Walls Floors / Slabs Drainage Connections / Plates Roof / Floor Openings

About this detail

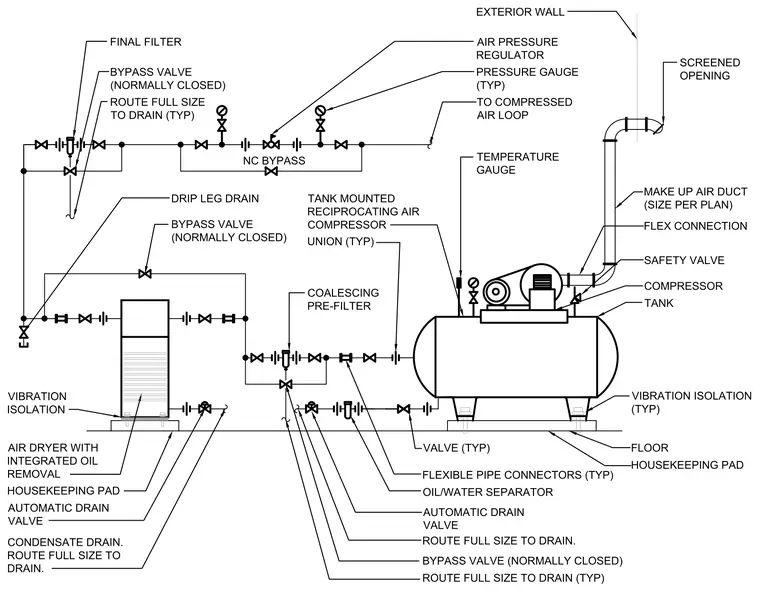

A tank-mounted reciprocating air compressor rests on vibration isolation pads and a concrete housekeeping pad, connecting to an intake makeup air duct with a flexible connection routed to a screened exterior wall opening. The compressed air output routes through isolation valves, flexible pipe connectors, an oil/water separator, a coalescing pre-filter with a normally closed bypass valve, and an air dryer with integrated oil removal. Condensate and drain lines from the equipment are routed full size to drain via automatic drain valves and drip leg drains. Downstream air passes through a pressure regulator, pressure and temperature gauges, and a final filter with a normally closed bypass before supplying the compressed air loop.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
