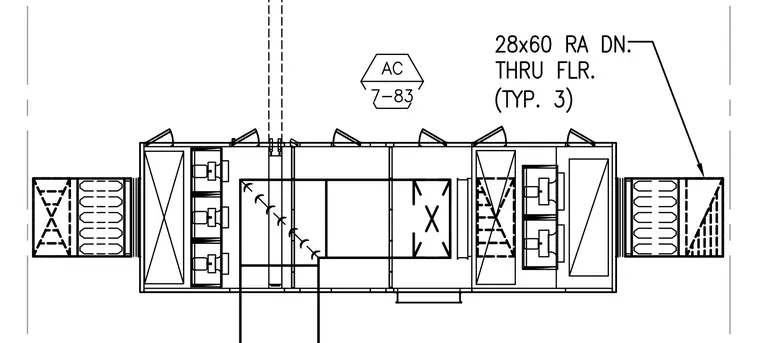

An air handling unit plan layout features a twenty-eight by sixty inch return air duct down through the floor typical in three locations. The unit connects to supply and return ductwork featuring internal fan sections and filter banks. A detail reference hexagon bubble AC 7-83 links this assembly to sheet seven eighty-three.
