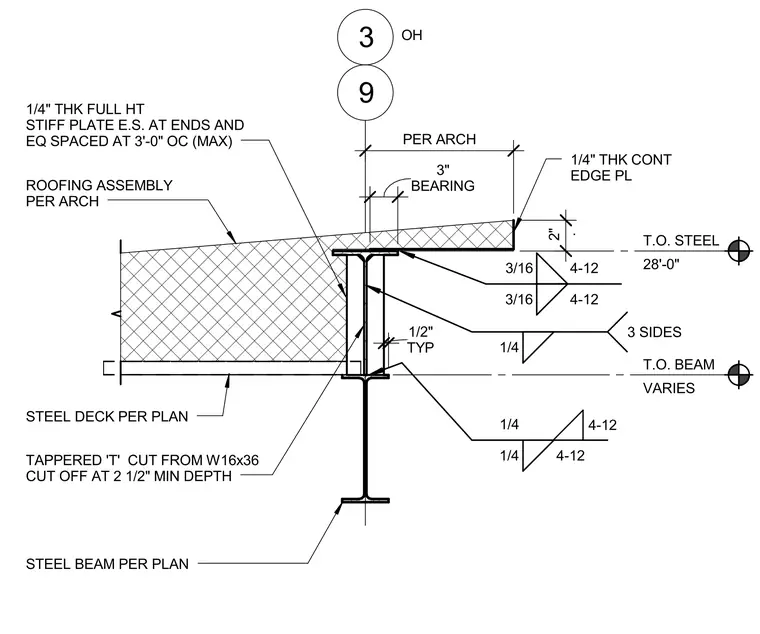

A tapered tee cut from a W16x36 shape and cut off at a two-and-a-half-inch minimum depth bears on a structural steel beam sized per plan with a three-inch bearing width. One-quarter-inch thick full-height stiffener plates are provided each side at the ends and spaced equally at three feet on center maximum. A one-quarter-inch thick continuous edge plate is welded with three-sixteenths-inch fillet welds at four-to-twelve spacing. Additional connections use one-quarter-inch fillet welds on three sides typical.
9 3 OH T.O. STEEL TYP 1/2" 3" BEARING PER ARCH ROOFING ASSEMBLY PER ARCH STEEL DECK PER PLAN TAPPERED 'T' CUT FROM W16x36 CUT OFF AT 2 1/2" MIN DEPTH STEEL BEAM PER PLAN 1/4" THK CONT EDGE PL 1/4" THK FULL HT STIFF PLATE E.S. AT ENDS AND EQ SPACED AT 3'/0" OC (MAX) 1/4 4/12 1/4 4/12 3/16 4/12 3/16 4/12 1/4 3 SIDES 28'/0" T.O. BEAM VARIES 2" .
