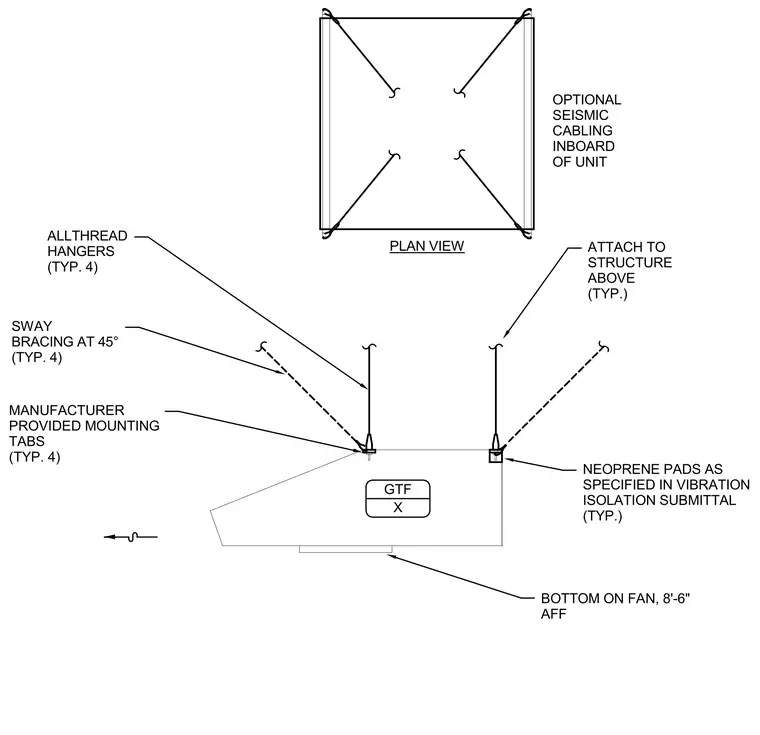

The garage transfer fan is suspended from the structure above using four typical allthread hangers attached to manufacturer-provided mounting tabs typically numbering four. Neoprene pads specified in the vibration isolation submittal sit beneath the unit. Four typical sway braces are installed at a forty-five degree angle, complemented by optional seismic cabling inboard of the unit. The bottom of the fan is positioned at eight feet six inches above the finished floor.
SWAY BRACING AT 45° (TYP. 4) ALLTHREAD HANGERS (TYP. 4) MANUFACTURER PROVIDED MOUNTING TABS (TYP. 4) ATTACH TO STRUCTURE ABOVE (TYP.) NEOPRENE PADS AS SPECIFIED IN VIBRATION ISOLATION SUBMITTAL (TYP.) BOTTOM ON FAN, 8'-6" AFF OPTIONAL SEISMIC CABLING INBOARD OF UNIT PLAN VIEW GTF X
