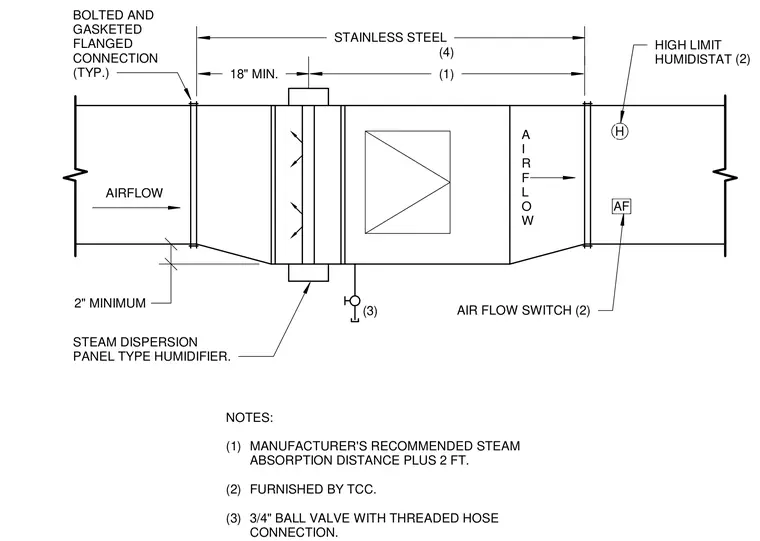

A stainless steel panel type steam dispersion humidifier is installed inline within a duct system using typical bolted and gasketed flanged connections. The unit requires a minimum two inch clearance and an upstream eighteen inch minimum straight run. Two high limit humidistats and an airflow switch are positioned downstream, with components furnished by TCC. A three-quarter inch ball valve with a threaded hose connection is installed at the bottom of the humidifier. The installation maintains the manufacturer's recommended steam absorption distance plus two feet.
H HIGH LIMIT HUMIDISTAT AF AIRFLOW A I R F L O W BOLTED AND GASKETED FLANGED CONNECTION (TYP.) AIR FLOW SWITCH (2) (1) (2) NOTES: (1) MANUFACTURER'S RECOMMENDED STEAM ABSORPTION DISTANCE PLUS 2 FT. (2) FURNISHED BY TCC. (3) 3/4" BALL VALVE WITH THREADED HOSE CONNECTION. STAINLESS STEEL 2" MINIMUM 18" MIN. STEAM DISPERSION PANEL TYPE HUMIDIFIER. (4) (3)
