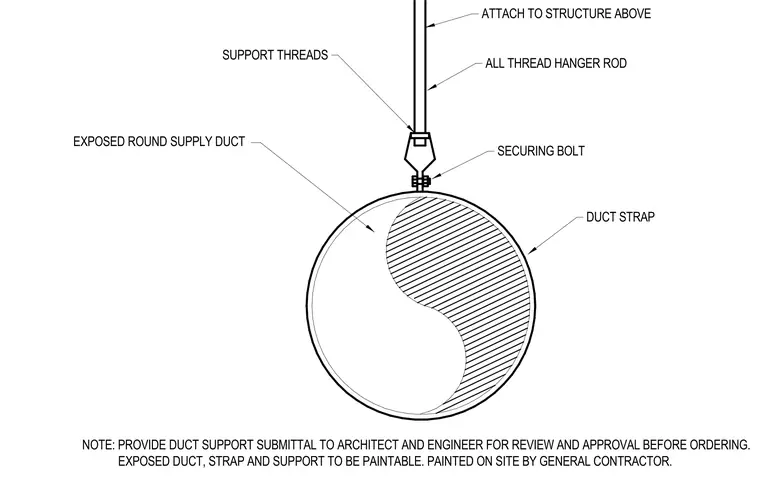

An exposed round supply duct is supported by a curved duct strap secured with a bolt and attached to an all-thread hanger rod. The hanger rod connects to the building structure above using threaded supports. All exposed ductwork, straps, and supports must be paintable and are painted on site by the general contractor.
EXPOSED ROUND SUPPLY DUCT DUCT STRAP ALL THREAD HANGER ROD ATTACH TO STRUCTURE ABOVE SECURING BOLT SUPPORT THREADS NOTE: PROVIDE DUCT SUPPORT SUBMITTAL TO ARCHITECT AND ENGINEER FOR REVIEW AND APPROVAL BEFORE ORDERING. EXPOSED DUCT, STRAP AND SUPPORT TO BE PAINTABLE. PAINTED ON SITE BY GENERAL CONTRACTOR.
