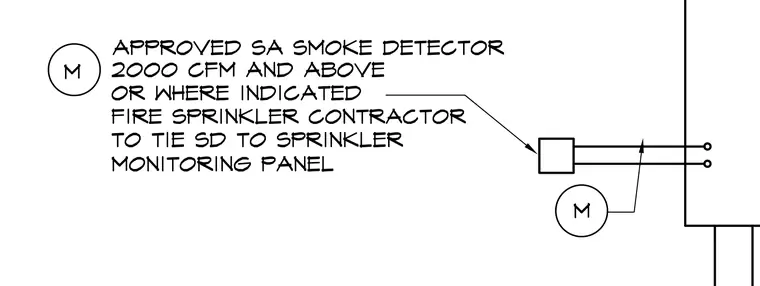

An approved standalone smoke detector rated for 2000 CFM and above or where indicated requires integration with the fire protection system. The fire sprinkler contractor ties the smoke detector to the sprinkler monitoring panel according to the indicated schematic wiring.
