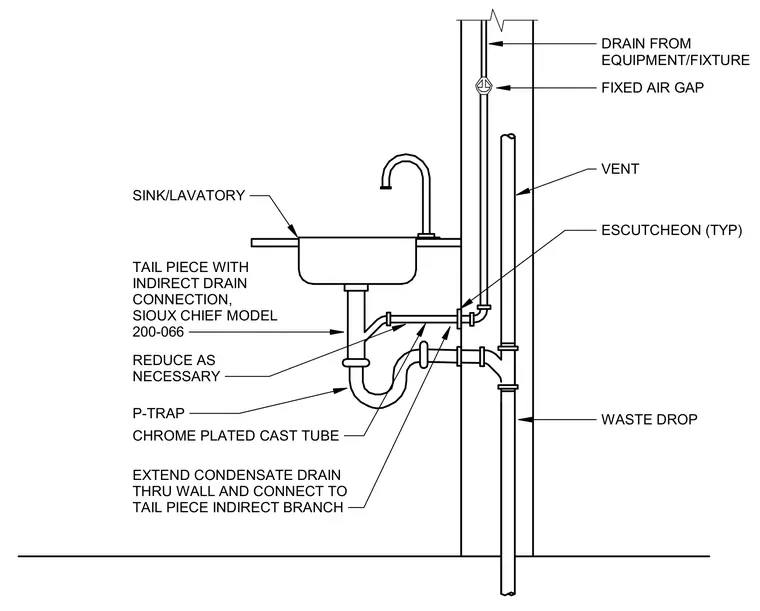

An equipment condensate drain extends through the wall with a fixed air gap before connecting to the indirect branch of a sink tailpiece. A Sioux Chief Model 200-066 tailpiece with an indirect drain connection reduces as necessary to a chrome-plated cast tube P-trap. The waste branch routes to the vertical waste drop and vent stack, with typical escutcheons installed where piping penetrates the wall finish.
FIXED AIR GAP VENT SINK/LAVATORY DRAIN FROM EQUIPMENT/FIXTURE ESCUTCHEON (TYP) TAIL PIECE WITH INDIRECT DRAIN CONNECTION, SIOUX CHIEF MODEL 200-066 WASTE DROP P-TRAP CHROME PLATED CAST TUBE EXTEND CONDENSATE DRAIN THRU WALL AND CONNECT TO TAIL PIECE INDIRECT BRANCH REDUCE AS NECESSARY
